Sound familiar?Markham
- The call
- You have just moved in. The garage door carries a proper keyed handle on the outside, but no key came with the house, and the inside slide is painted over. You would like to be able to use it.
You pushed the slide bolt across like always, but tonight it stops short of the slot in the track and springs back. The door is down, the bottom seal is on the concrete, yet the bar and its hole are a finger's width apart.
In plain words
The cylinder in a garage T-handle is a small pin-tumbler lock, much like a front door's. If the key is lost, or a previous owner kept it, the cylinder is rekeyed to a fresh combination or swapped for a new one and keys are cut on the spot. Where the keyway matches the house locks, the garage handle can often be pinned to the same key, so one key runs the property. Worn keys that need a wiggle are replaced by keys cut to the new pinning rather than copied. All of it happens in the same visit as any mechanical repair.
Garage Door Manual Lock Repair · Markham
How the visit goes
Scene 1
What the household wants the lock for
The last part of the first look is a conversation. Some people want a lock that is used every night; others want it only for power outages and holidays; others want a keyed handle they can open from the driveway when the remote is in the other car. Some want the garage keyed to the house key, and some want the lock gone and the opener's own lock-out used instead. Where a locked door has to be opened without a key, the technician also confirms the caller's connection to the property, a courtesy every neighbour benefits from. Knowing the intended use shapes which parts are fitted, how many keys are cut and what the handover covers.
Scene 2
Rebuilding or replacing the centre mechanism
Inside the door, the cover comes off the centre lock body. A broken return spring is replaced and the cam checked for wear; where the cam has rounded off or the body has cracked, a complete mechanism of matching pattern is fitted so the existing handle and bars line up with it. The spindle is checked for twist and replaced with one of the correct length for the door's thickness, and the inside knob or turn handle is secured with a fresh set screw onto a flat. Everything is then operated from both sides with the door shut, adjusting the bar connections until a quarter turn throws both bars fully and releases them cleanly.
Scene 3
Keys, spares and who holds them
If the cylinder was rekeyed or replaced you leave with new keys cut from the fresh pinning, usually two or three, each tested in the handle. Decide now who in the household carries one and where a spare lives; a lockbox or a trusted neighbour beats a hook inside the garage, since the door you are trying to open is the one the spare is behind. If the garage was keyed to match the house, test the shared key in every door before the technician goes. Note the cylinder type and keyway on the record, so future keys can be cut or the lock re-pinned without guesswork.
In the van
- Dry graphite or PTFE lubricant
- Inside turn handle and spindle
- Inside slide bolt or snap latch
- Lock cylinder with tailpiece
- Carriage bolts and backing plates
What shapes the quoteMount Joy Door & Opener Co.
- Access along the door edges
- Shelving, bikes or storage against the vertical tracks and door edges slow the work at the guides and slots. Clearing a metre either side beforehand shortens the visit.
- Steel skin or wood
- Thin steel that has let the screws pull, or wood gone soft around the handle, calls for carriage bolts, backing plates or a filler block. That reinforcement is its own line in the quote.
- Related hardware noticed on the way
- Worn rollers, a loose track bracket or a tired bottom seal seen while the door is being aligned are pointed out and offered as optional items, since they are easy to do in the same visit.
FeesSame any hour
Things people wonder
What kinds of manual locks are found on garage doors?

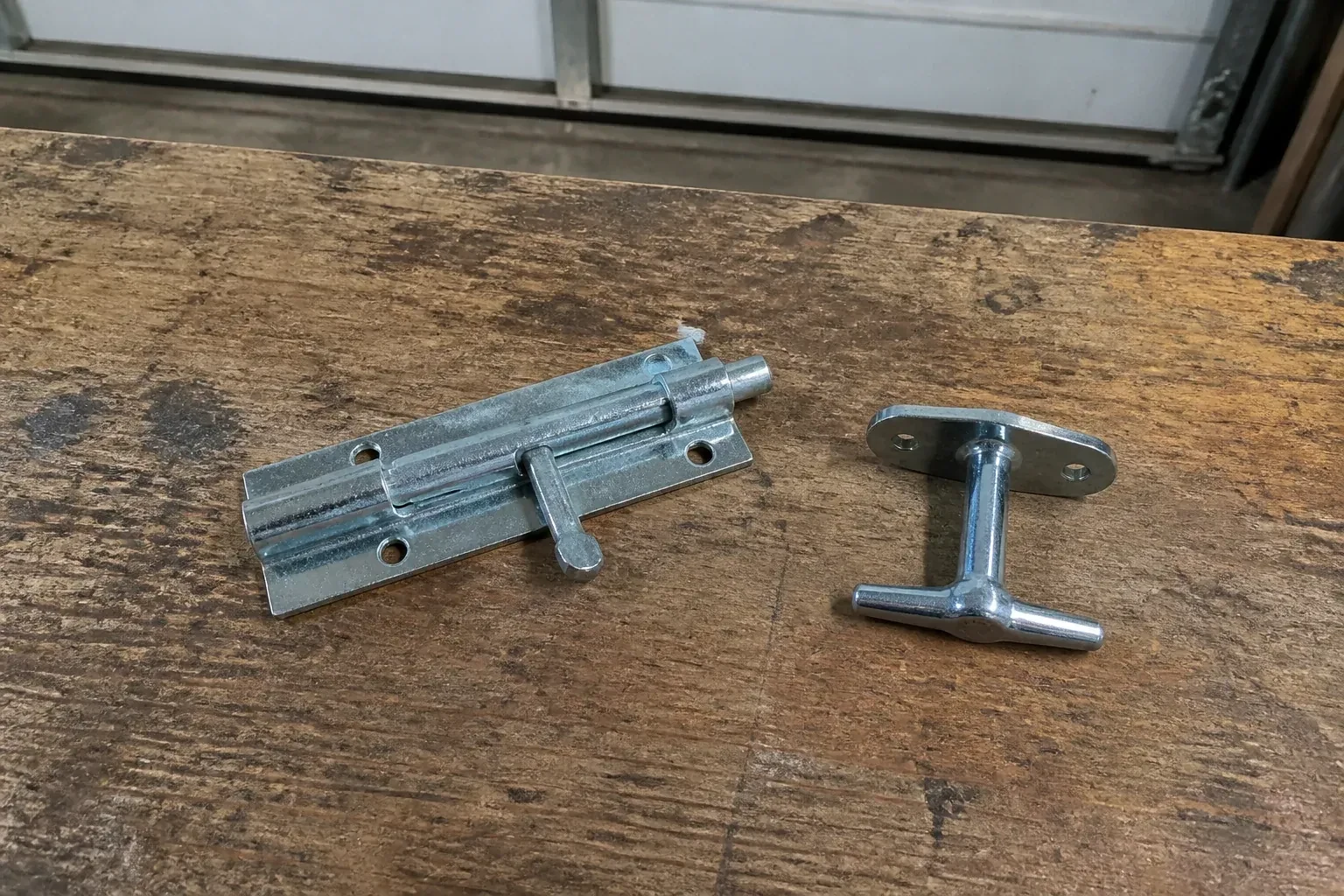

Two are common on sectional doors. An inside slide bolt sits on the door's edge and shoots sideways into a slot in the vertical track; some are spring-loaded snap latches that lock on their own when the door closes. An outside keyed T-handle turns a centre mechanism that throws a bar into each track, though some models pull a cable to release a spring latch instead. Some doors add a keyed cylinder on the side to work the slide bolt from outside.
What is an automatic garage door lock, and does it replace the manual one?
It is a motorised deadbolt, offered as an accessory by some opener makers, that slides a bar into the track each time the door closes and withdraws it before the door opens, all controlled by the opener. It gives the physical security of a manual lock without the need to remember it. It can sit alongside a manual lock kept for outages, or take its place entirely.
Do you replace the whole handle or just the cylinder?
Whichever the fault calls for. A worn or broken cylinder in a handle that is otherwise sound is swapped or rekeyed on its own. A handle that is cracked, corroded through or of a pattern with no parts available is replaced as a set with its spindle and inside turn handle. The technician shows you what has failed before either route is taken.
Repair & Maintenance
- Garage Door Tune-UpTwice this week the door started closing, stopped a metre from the floor and reopened on its own.
- Off-Track Garage Door ResetYou tapped the door with the bumper while backing in, barely a nudge, and now the bottom corner has swung inward.
- Garage Door Panel ReplacementThe top section has developed a bend where the opener arm pulls on it.
- Garage Door Bottom Seal ReplacementOne end of the bottom seal has slipped out of its channel and hangs down like a loose shoelace.
- Garage Door Perimeter WeatherstripThe new door went in last year and looks perfect, but the old wooden stop and its tired seal were left in place.
